Foldable Solar Panel
Model Name
LR5-72HTHF-600
Weight
0.85kg
Expanded Dimensions
757*517mm
Folded Dimensions
258.5*237.8*15mm
Chip Type
Polymer Monocrystalline Silicon
Component Electrical Performance
Pmax: 50W, TYPE-C: 5V3A/9V2A/12V1.5A, USB-A: 5V3A/9V2A/12V1.5A.
Output Ports
USB, TYPE-C
Output Voltage
5V, 9V, 12V Smart Recognition
Color Selection

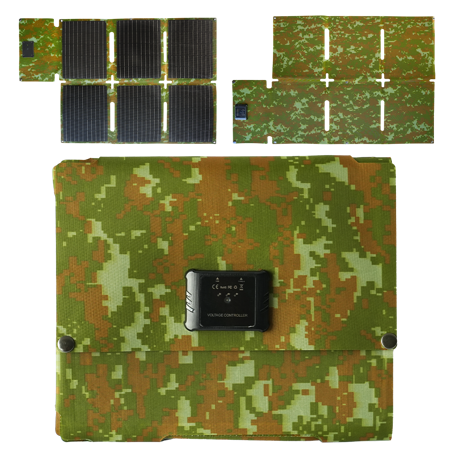

Black, Jungle Camouflage, Digital Camouflage, Military Green
Foldable Solar Panel
Model Name
LR5-72HTHF-600
Weight
0.85kg
Expanded Dimensions
757*517mm
Folded Dimensions
258.5*237.8*15mm
Chip Type
Polymer Monocrystalline Silicon
Component Electrical Performance
Pmax: 50W, TYPE-C: 5V3A/9V2A/12V1.5A, USB-A: 5V3A/9V2A/12V1.5A.
Output Ports
USB, TYPE-C
Output Voltage
5V, 9V, 12V Smart Recognition
Color Selection
Black, Jungle Camouflage, Digital Camouflage, Military Green

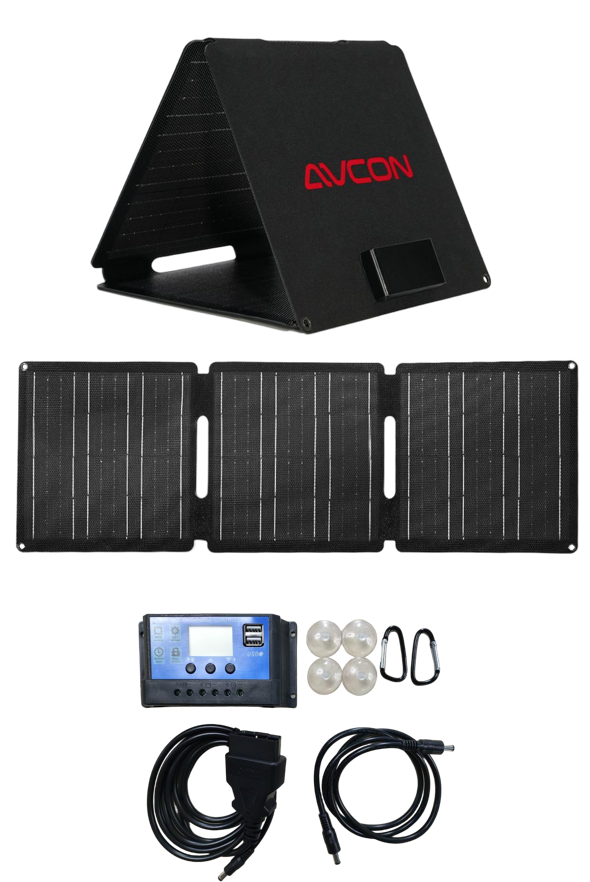

Foldable Solar Panel
Chip Type
Monocrystalline Silicon
Power Generation
30W Max
Output Ports
DC5521*1
TYPE-C*1
USB-A*
Output Voltage
DC5521: Maximum power point operating voltage (Vmp): 19.8V 30W max. Open circuit voltage (Voc): 23.76V (± 10%)
TYPEC*1
5V 3A/9V 2.5A/12V 2A/15V 1.5A/20V 1.25A.
USB-A*1
5V 3A/9V 2A/12V 1.5A.
Color Selection
Primarily black and gray.

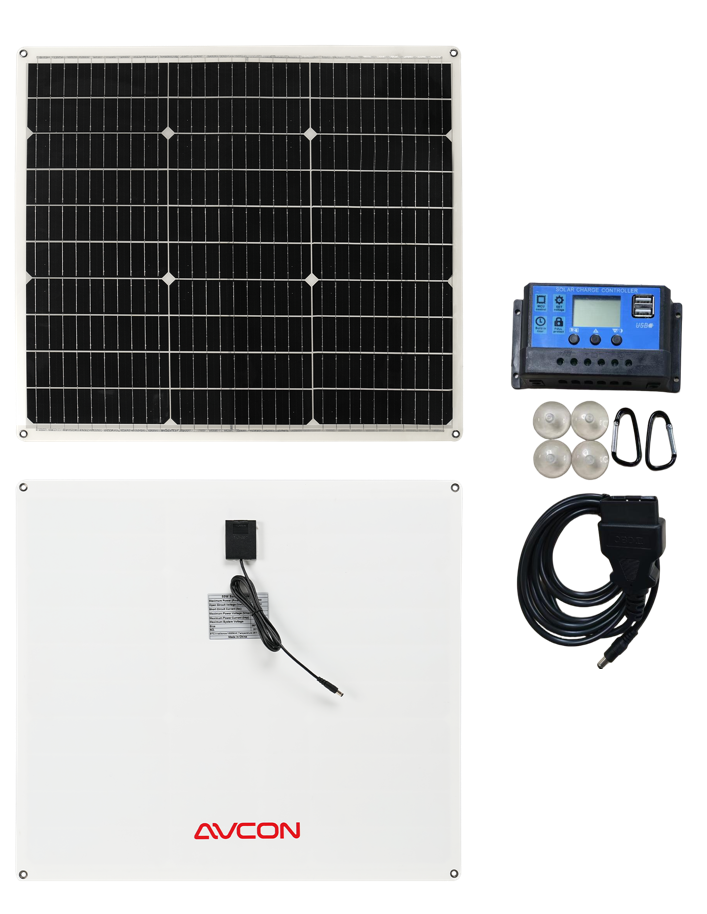

Foldable Solar Panel
Model Name
50W-DC5521
Chip Type
Monocrystalline Silicon
Power Generation
50W Max
Output Ports
DC5521 female connector
Output Voltage
Open-circuit voltage (Voc): 19.8V (± 10%) Short-circuit current (Isc): 3.333A (± 10%)
Maximum power point operating voltage (Vmp)
16.5V (± 10%) Maximum power point operating current (Imp): 3.030A (± 10%)
Color Selection
Black + White
System Voltage
12V/24V Adaptive
Rated Current
10A Max
USB-A Output
5V/0.5A Max
Dimensions
133.5X70X35MM
Other
1. Solar Panel Input: DC5521 Input/Terminal Block
2. Load Output: DC5521 Output/Terminal Block
3. Battery Interface: Terminal Block
